HIKMicro Thunder TH35 Wärmebild-Vorsatzgerät (Complete Set)

Item number: HIK.TH35
Category: HIKMicro
Brand: HIKMicro

Including: Rusan Adapter in desired size, 4 Accu-Batteries and charger!



HikMicro Thunder 35C Clip-On Scope  NEW!
Handheld and Thermal Clip-On Scope
HM-TR13-35XF/CW-TH35C

HikMicro Thunder 35C Clip-On Thermal Scope has a 384× 288 thermal detector and 748 × 561OLED monitor, which provides clear image under harsh environment conditions like darkness, fog, smoke, dust, rain, snow, wood, camouflage, etc. The scope is mainly applied to scenarios such as patrolling, and hunting, etc.




Key Features
? 384 × 288 thermal resolution, high sensitivity detector, NETD less than 35 mk(25°C,F#=1.0)
? Image processing technology: Adaptive AGC, DDE, 3D DNR
? 748 × 561resolution 0.39-inch OLED display
? Supports distance measurement,and hotspot function
? Supports video recording and snapshot, built-in EMMC (16GB)
? Supports digital zoom andcursorfunction, palettes of color adjustable
? Up to4.5hours continuousworking

? 10 years guarantee on the sensor *(HIK guarantees that the sensor will deliver the same sensor performance for 10 years
? 2 years guarantee on the integrated battery
? 3 years guarantee on the entire device (excluding battery)






Specifications


Thermal Module
Image Sensor                             Vanadium Oxide Uncooled Focal Plane Arrays
Max. Resolution                             384 x 288 pixels
Pixel pitch17um
Response Waveband                   8μm to 14μm
NETD                                                < 35mk (@25 °C, F#=1.0)
Lens (focal length)                           35mm
IFOV                                              0.49 mrad
Field of View                                              10.0°× 8°
F Number                                       F1.0
Frame Rate50Hz
Magnification1x
Image Display
Monitor                                          0.39-inch, OLED, 1024 ×768
Palettes                                           Black hot, white hot, red hot, fusion
Exit Pupil22mm
Eye Relief10mm
Observation DistanceMax. 1235m
Contrast AdjustmentYes
Brightness AdjustmentYes
System
Digital Zoom                            1X, 2X, 4X, 8X
CrosshairYes
HotspotYes
Distance MeasurementYes
Scene modeJungle, Recognition
Standby modeYes
Video RecordingYes
Picture SnapshotYes
PIPYes
DPCYes
Uniformity CorrectionAuto, Manual, External Correction
StorageBuilt-in EMMC 16GB
Power Supply
Battery                                          Two Replacable Batterys
Type: CR123A or RCR123A
Battery Operating Time 4.5 h (25 °C, with hotspot off)
4 h (25 °C, with hotspot on)
Anti-reverse battery connectionYes
Overvoltage ProtectionYes
Battery Capacity DisplayYes
Type-C Power Supply 5 VDC, 2 A
Supports external power supply
General
PortType-C
Working Temperature-20°C ~55°C
Protection LevelIPX7
Vibration & Shock750g / 1ms
Transfer Ring Type50-59mm

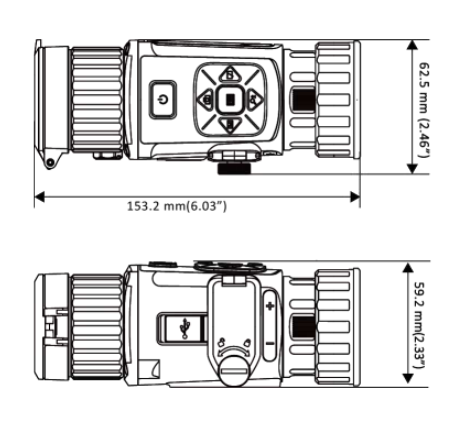

Dimension (L x W x H)153.2 mm × 62,5 mm × 59.2 mm
Weight0.42 kg (without eyepiece and batterys)

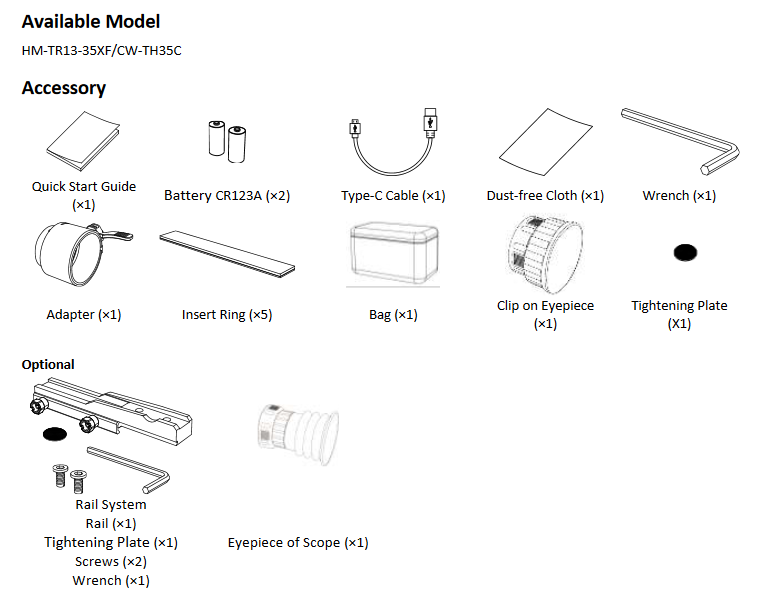

Order includes:

1x Hikmicro Thunder 35 Clip-On (HM-TR13-35XF/CW-TH35C) Thermal scope
1x Clip-On Adapter (incl. 5x ring reducer)
1x Clip-On Eyepiece
2x Battery (CR123A)
1x USB Type-C Cable
1x Protective Bag
1x Non-Dust Cloth
1x Quick Start Guide


Item numberHIK.TH35
Category HIKMicro
Product weight: 3,00 Kg
